MOS characteristic viewer and trainer

Description

A valuable screen to understand the MOS characteristics, with a user interface that designers will like. Change the model parameters and see their effects on Id/Vd, Id/Vg Id(log)/Vg, threshold vs. length. You can also fit the simulations with measurements we made in test-chips fabricated in 0.35, 0.25 and 0.18µm. In the manual, a tutorial on MOS models is given, with details on all parameters. MICROWIND supports MOS models 1, 3 and BSIM4.

Highlights

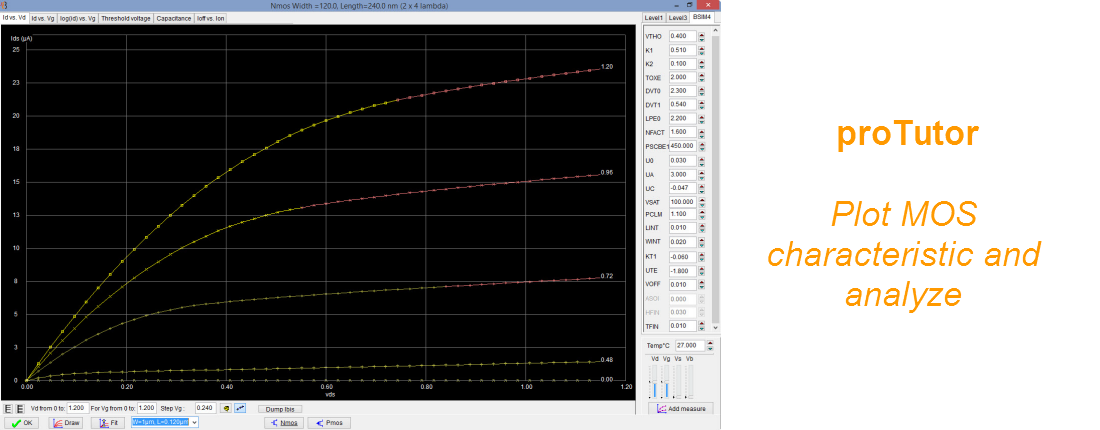

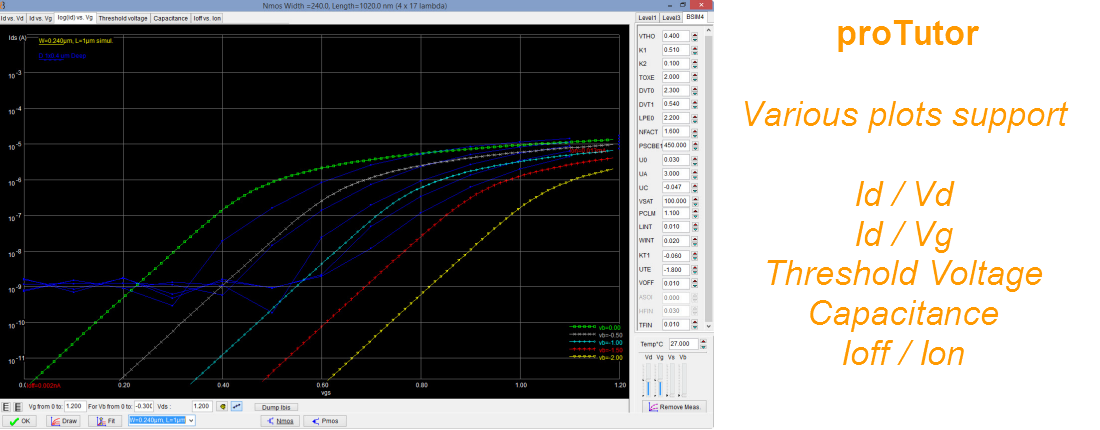

  • Change the model parameters and see their effects on Id/Vd, Id/Vg, Id(log)/Vg, threshold vs Length.
  • You can also fit the simulations with measurements we made in test-chips fabricated in 0.35, 0.25 and 0.18 µm
  • Full length tutorial on MOS models is provided in manual, with details on all parameters.

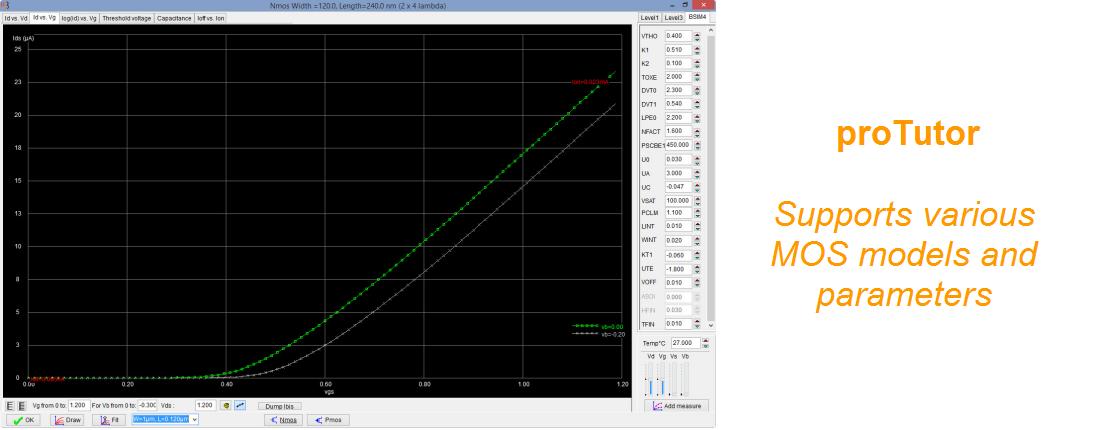

  • Supports level1, level3 and BSIM4 MOS models.
  • Documentation includes several aspects of MOS modeling.
