Touch the Deep-Sub Micron Technology

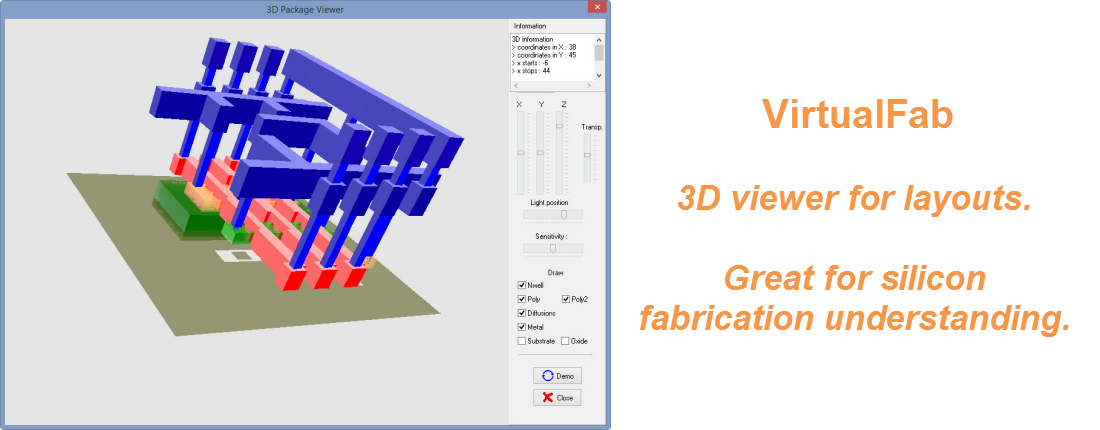

You will never teach deep-sub micron technology like before. As VirtualFab offers you a facility to analyze and view cross sectional view of silicon layers and 3D view of circuits. MICROWIND's VirtualFab enables to draw real-time images of the layout and navigate in full-3D on the surface or inside the IC. The user can modify the viewing position in X,Y,Z and play with light sources to create illustrative views of the layout. All technology transistors like MOSFET, FINFET, NSFET are supported for visualization.


  • 3D fabrication process simulator with cross sectional viewer.

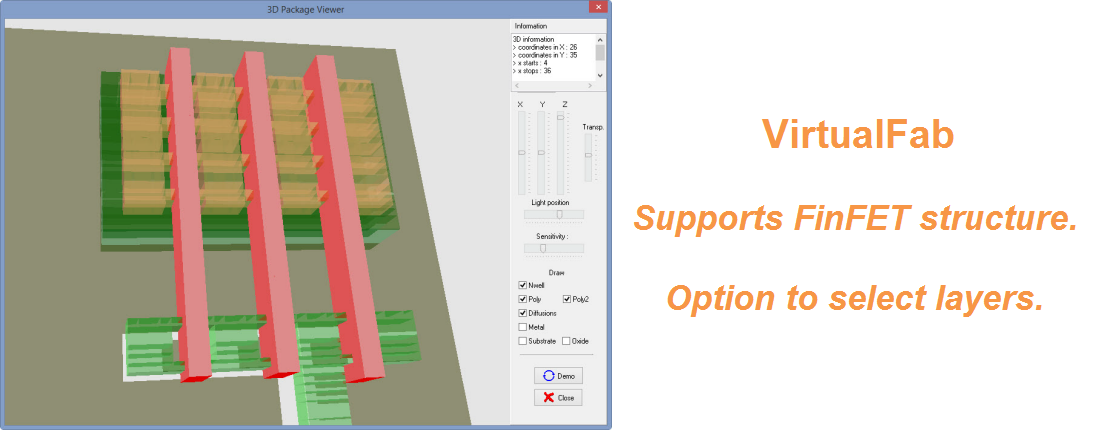

  • Transistor technologies supported like MOSFET, FINFET and newly introduced nsFET
  • Step-by-step 3-D visualization of fabrication for any portion of layout.
  • See how the contacts and metallizations are created.
  • See the self-aligned diffusion after the polysilicon gate is fabricated.
  • Check planes of VDD, VSS, and others signals.
  • Check the oxide structure, the low dielectric (Low K) and high K (SiO2) Sandwich, and passivation.
  • User can check the gate oxide and the MOS lateral drain diffusion structure.
  • Advanced 3D layout view with GEL technology

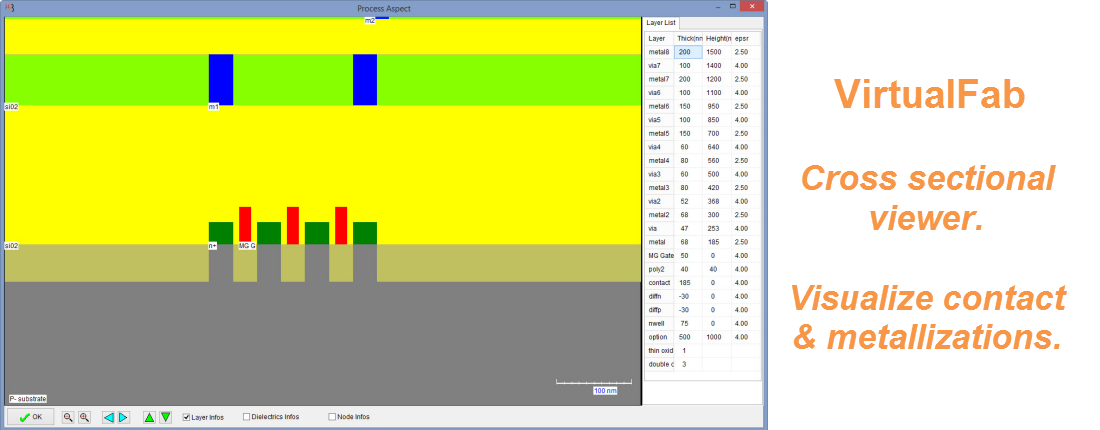

  • 2D cross sectional viewer with strain technology support.
  • Improved drawing speed.

Ready to learn about CMOS
